ITWELL

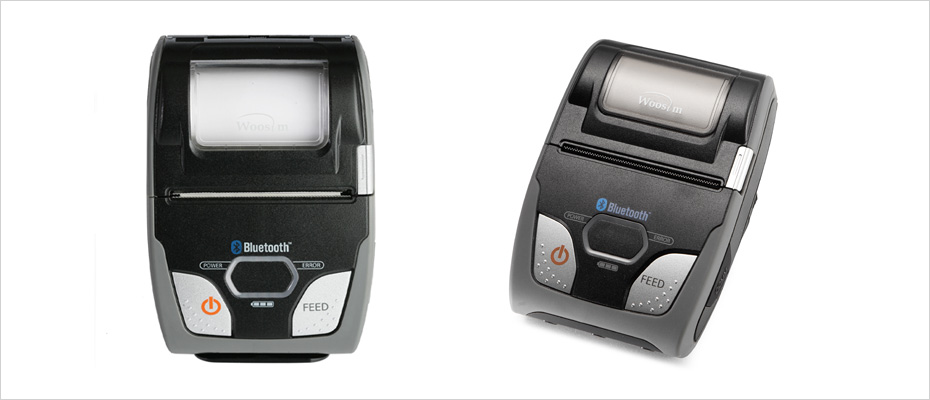

R240

Item	Specification
Printing method	Direct thermal line printing
Characters per line	42cpl (MAX)
Character size	Eng. : 924dots, 1224dots Kor. : 1624dots, [2424dots]
Optional Characters	Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request.
Resolution	203dpi, 8dots/mm
Print width	2-inch (48mm, 384dots)
Printing speed	100mm / sec (MAX)
Dimensions	79.5 X 114.3 X 43.6mm (Standard) 79.5 X 118.2 X 43.6mm (MSR option)
Weight	217g(Including battery)
Interface	UART(RS-232C or TTL) ,Bluetooth Ver2.1 + EDR
Paper supplied	Thermal roll paper, Label roll (58mm wide, 40ø)
Barcode supplied	1-dimension : Code128, Code39, I2/5, Code93 UPC, EAN, KAN, JAN, CODABAR 2-dimension : PDF417, QR Code, DATA Matrix,Micro PDF417, Truncated PDF417
Driver	Microsoft Windows XP / VISTA / 7 Windows CE, Linux, AndroidOS driver compatible
Black mark	Support black mark detection
H/W spec.	MCU : Renesas 32Bits, FLASH : 8M bytes, RAM : 16M bytes
Receive buffer size	1M bytes
MSR [option]	ISO 7810 / 7811 / 7812 Triple tracks(1&2&3) Reading
Battery	Rechargeable 7.4V DC , 1100mAh (Li-ion)
Battery duration	1 hour continuous printing
Battery Charger	Input (100~250V AC 50~60Hz) Output(8.4VDC/0.8A), 4hours full charge time
Environment Conditions	Temperature	-10°C ~ 50°C (operating) -10°C ~ 70°C (storage)
Environment Conditions	Humidity	30% - 80% (operating) 10% - 90% (storage)
MCBF (Mean Cycle Between failure)	Mechanical	37,000,000 lines
MCBF (Mean Cycle Between failure)	Head	Approximately 50 Km
